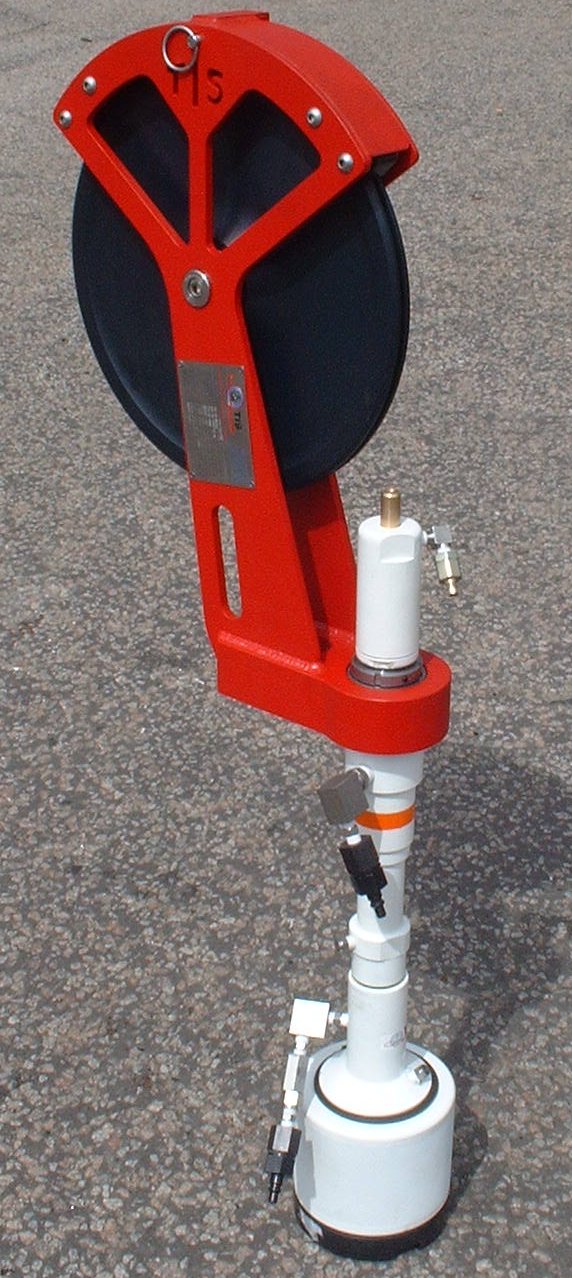

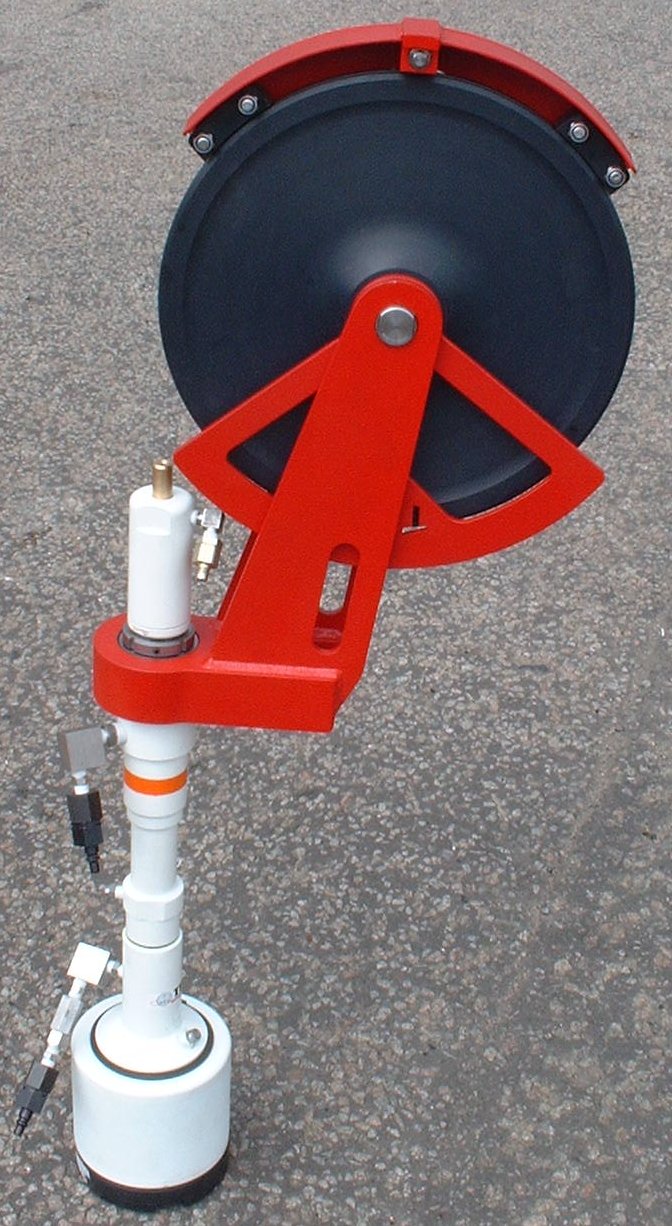

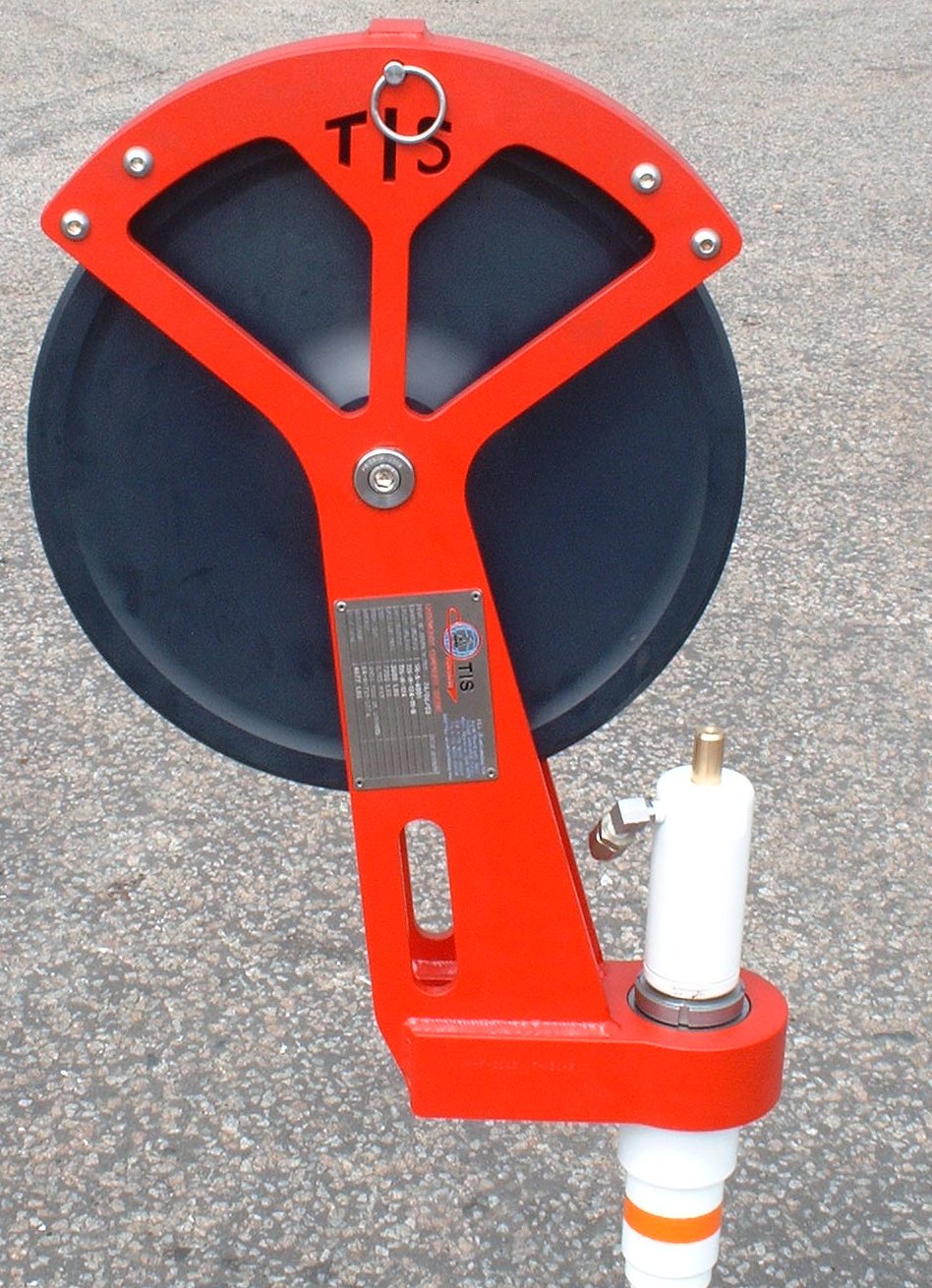

Liquid Seal Stuffing Boxes

TIS Liquid Seal Stuffing Boxes are designed for use in combination with a TIS Stuffing Box to retain well pressure, typically while performing slickline operations on HP/HT wells.

TIS Liquid Seal Stuffing Boxes are available with the
following options:

10,000 psi and 15,000 psi working pressures
Standard or sour service
Service temperature range of -290C to +1210C
Choice of quick union connections
Choice of wire size

Ball safety check valve sub-assembly which contains well
pressure in the event of the wire breaking
Conventional hydraulic packing nut that can be operated in the event of losing the grease seal
Wire wiper system to clean well deposits from the wire
All injection ports have integral ball safety check valves to prevent the loss of well pressure
Grease injection ports include swivel manifolds complete with quick release couplings to prevent hoses protruding and reduce risk of collision or damage.
Spring-loaded keeper blocks to prevent wire jump
