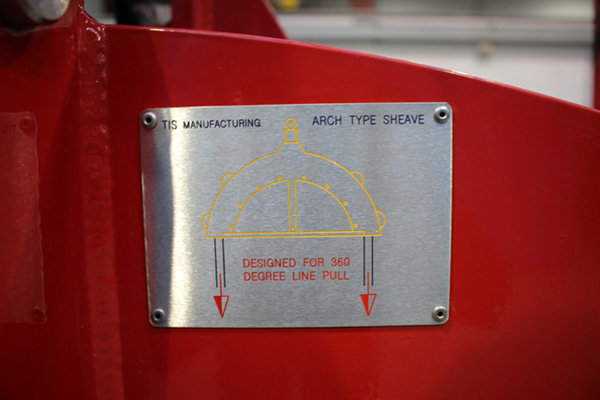

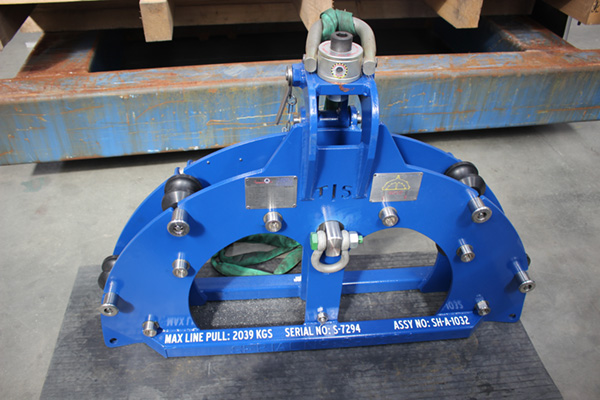

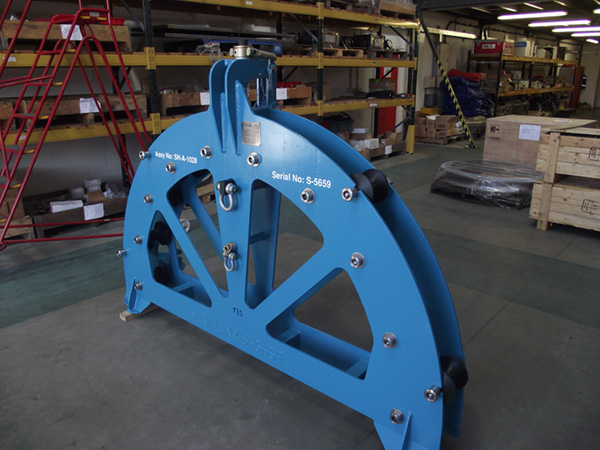

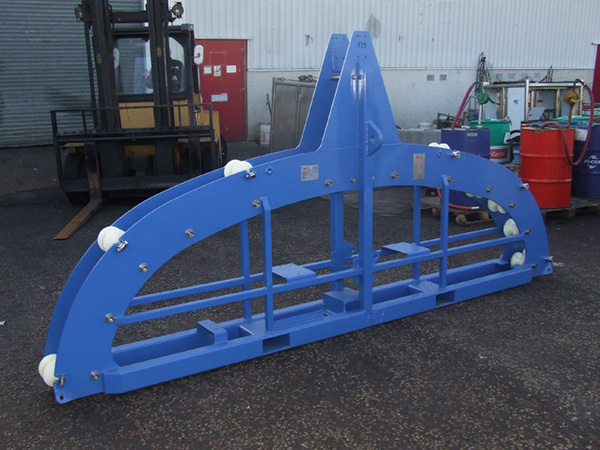

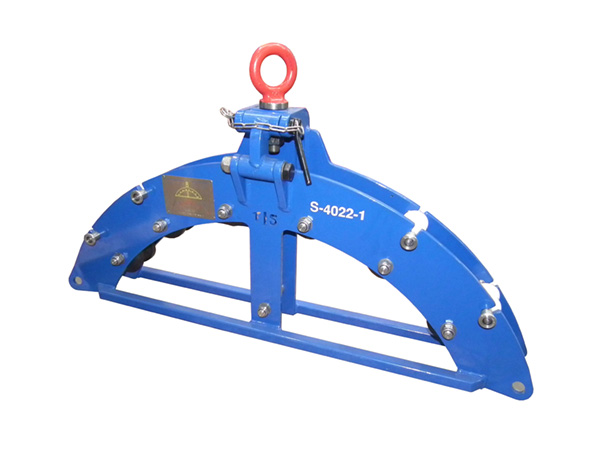

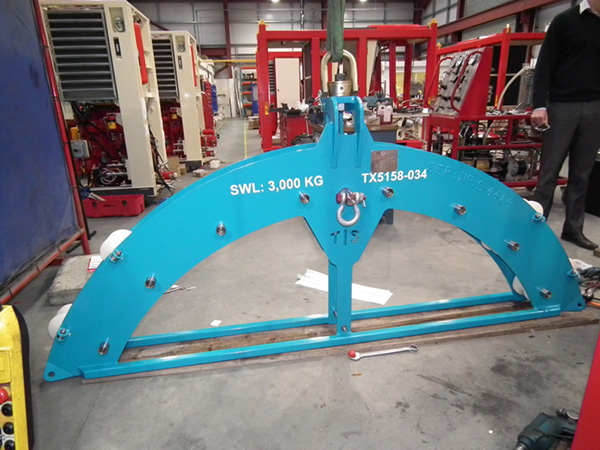

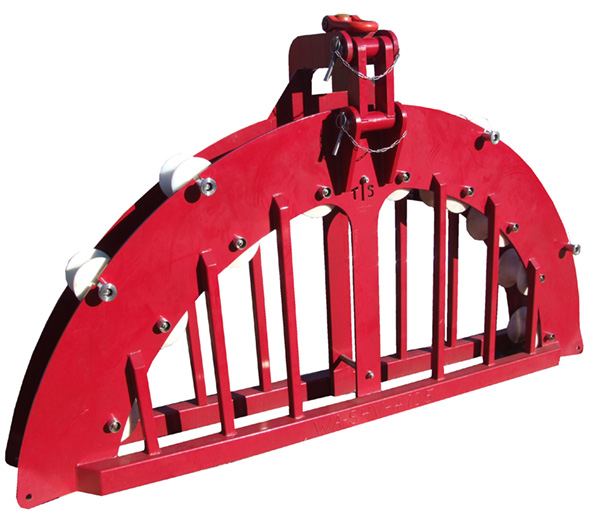

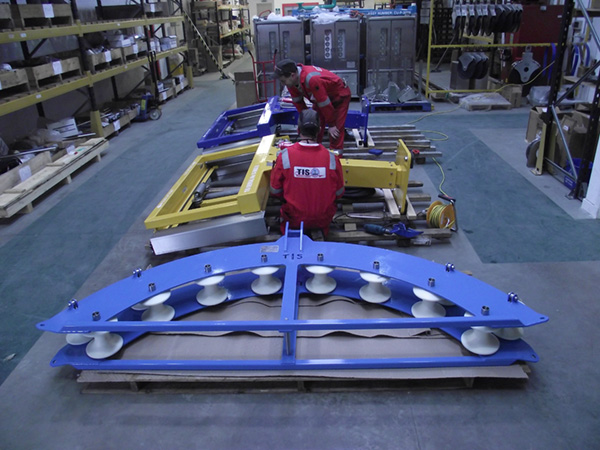

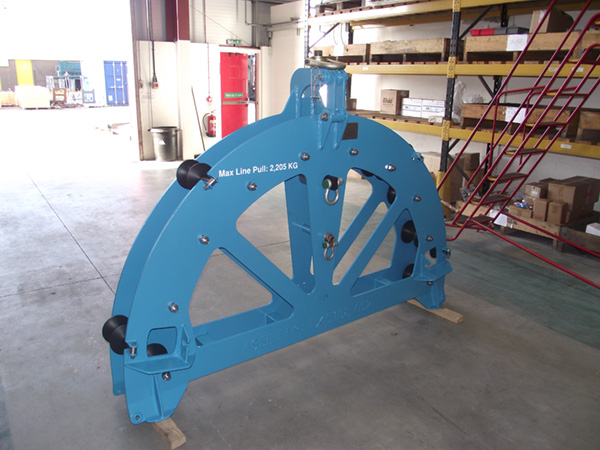

Umbilical Arch Sheaves

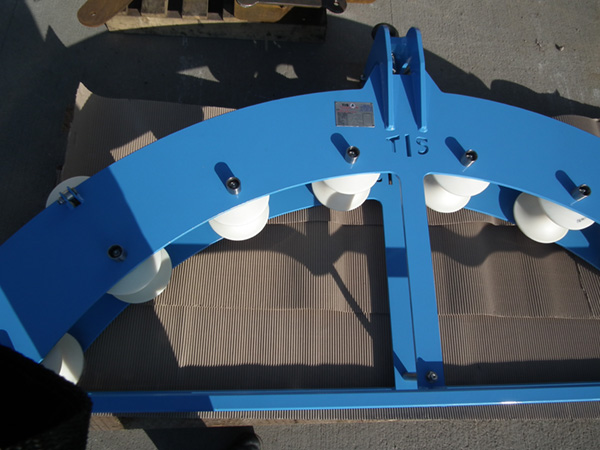

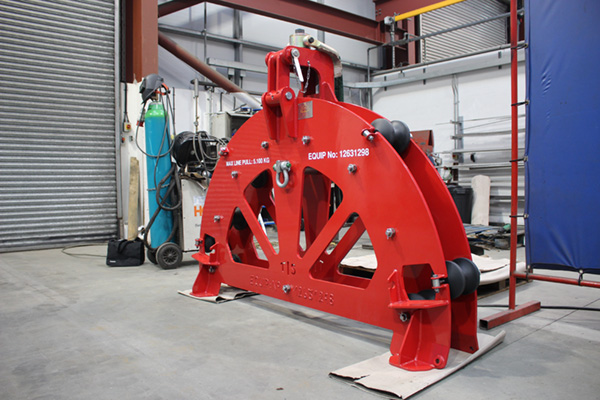

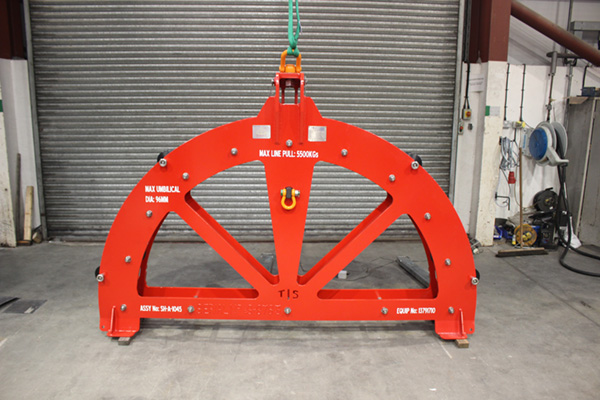

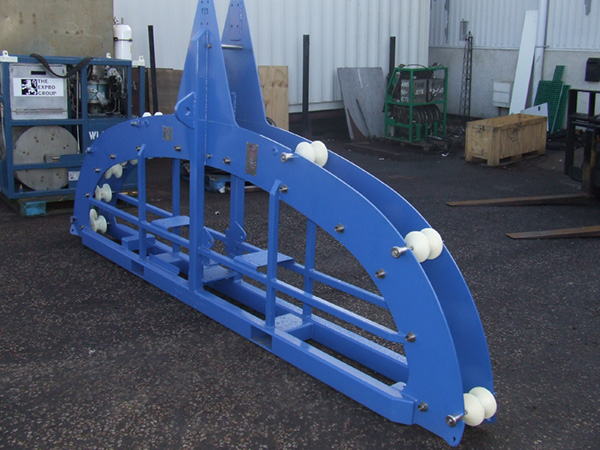

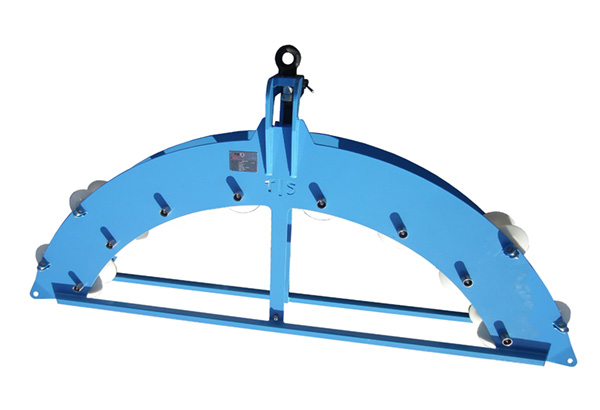

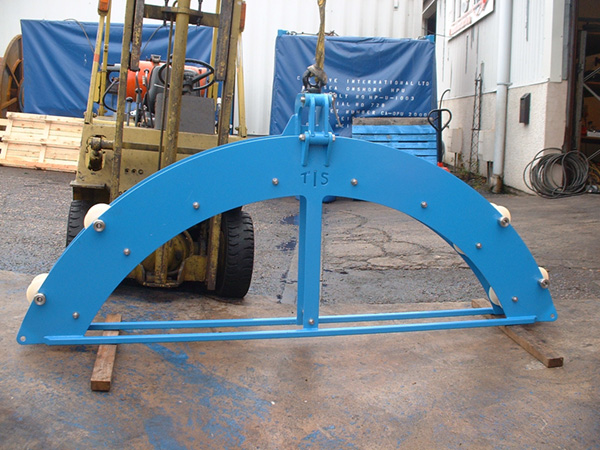

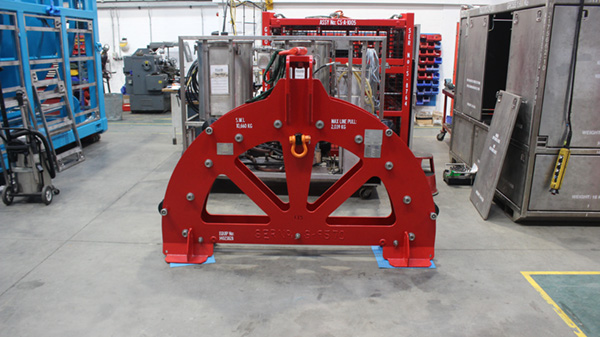

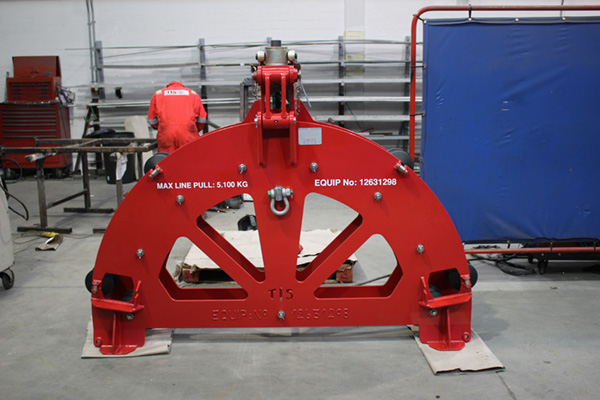

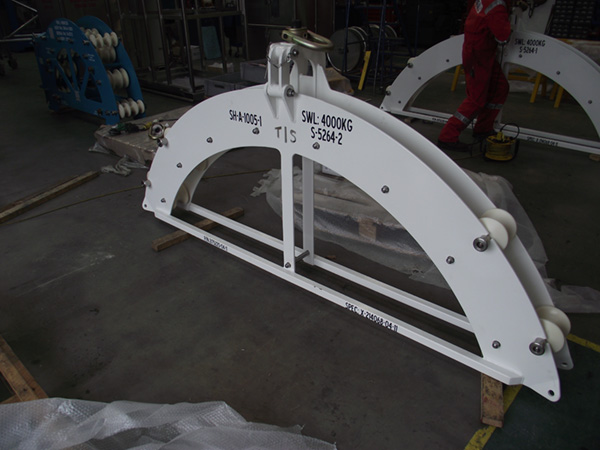

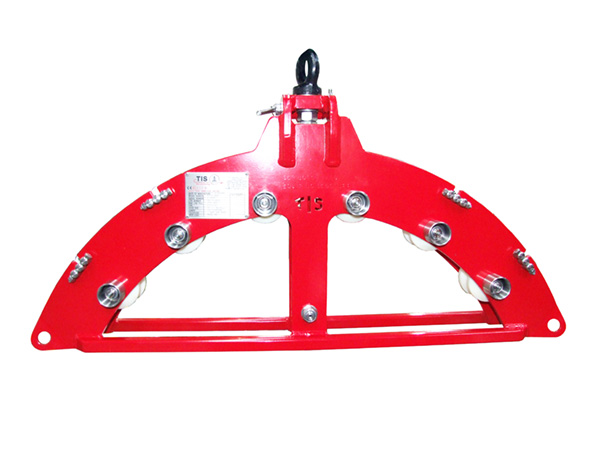

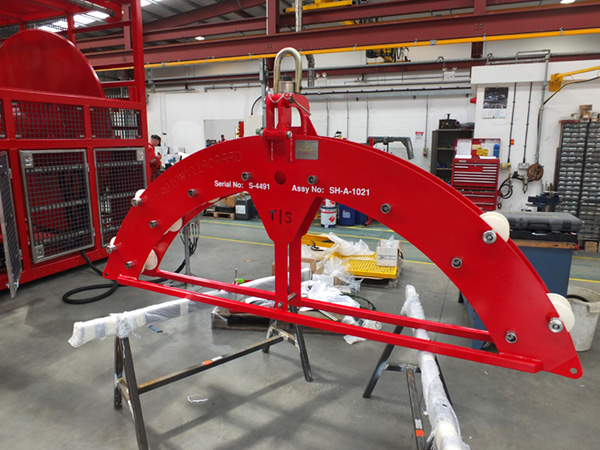

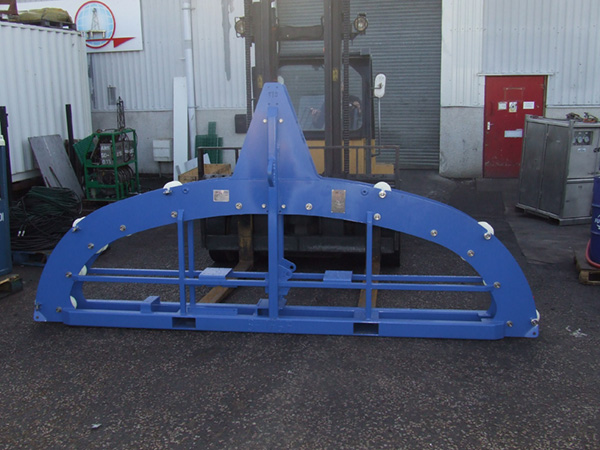

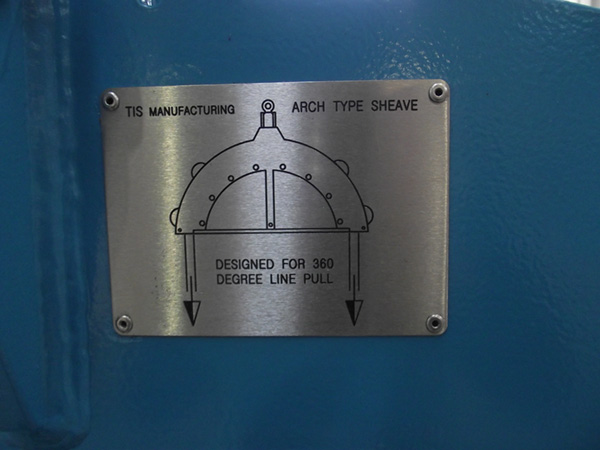

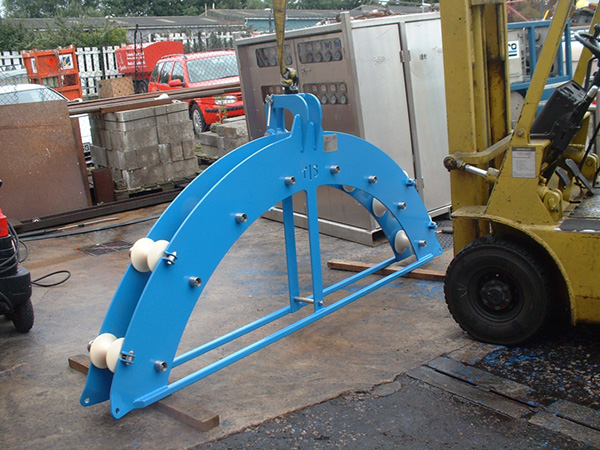

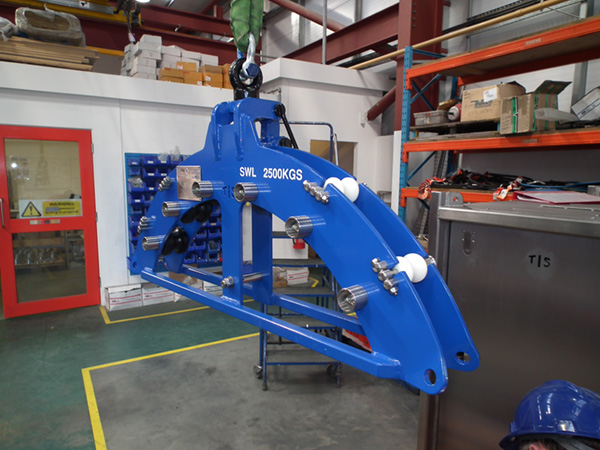

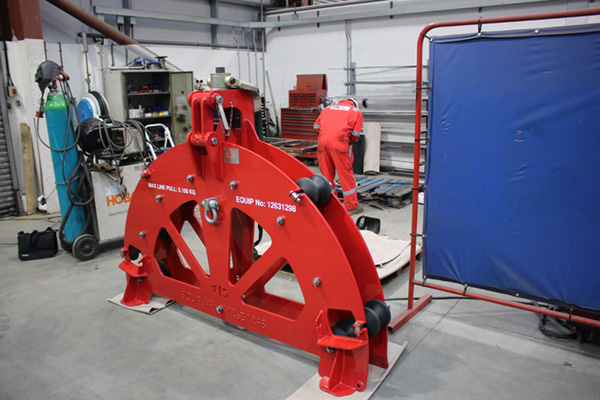

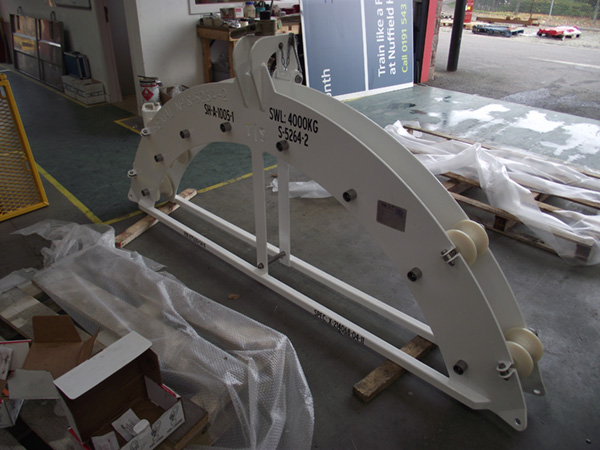

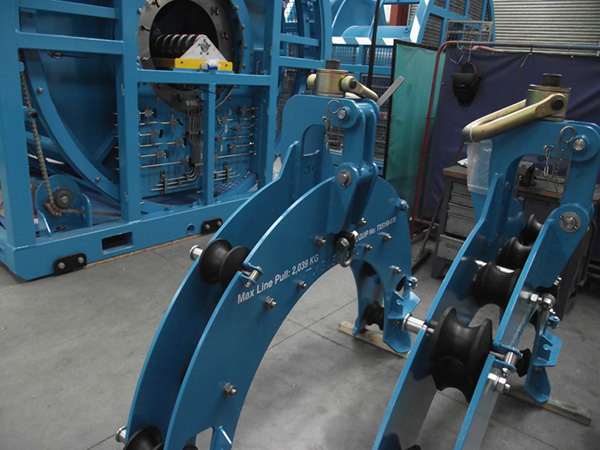

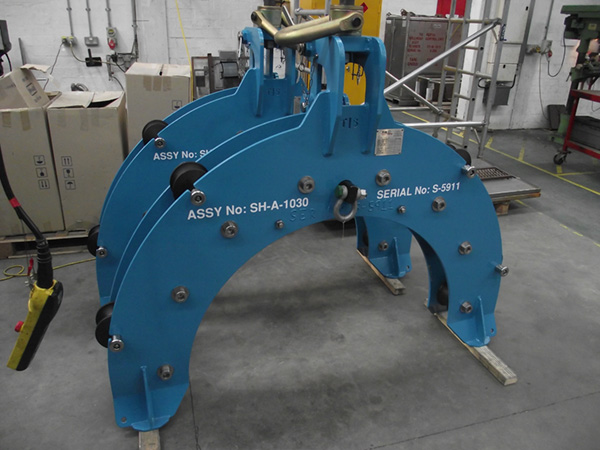

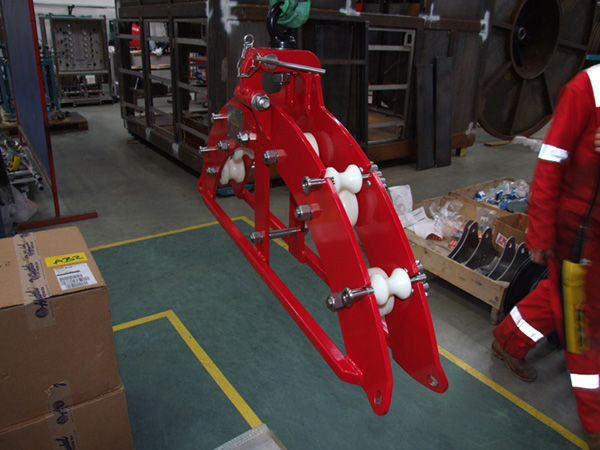

TIS Umbilical Arch Sheaves are designed to accommodate the required umbilical product and deployment arrangement during a range of operations.

Text

DNVGL-ST-0378 Certification

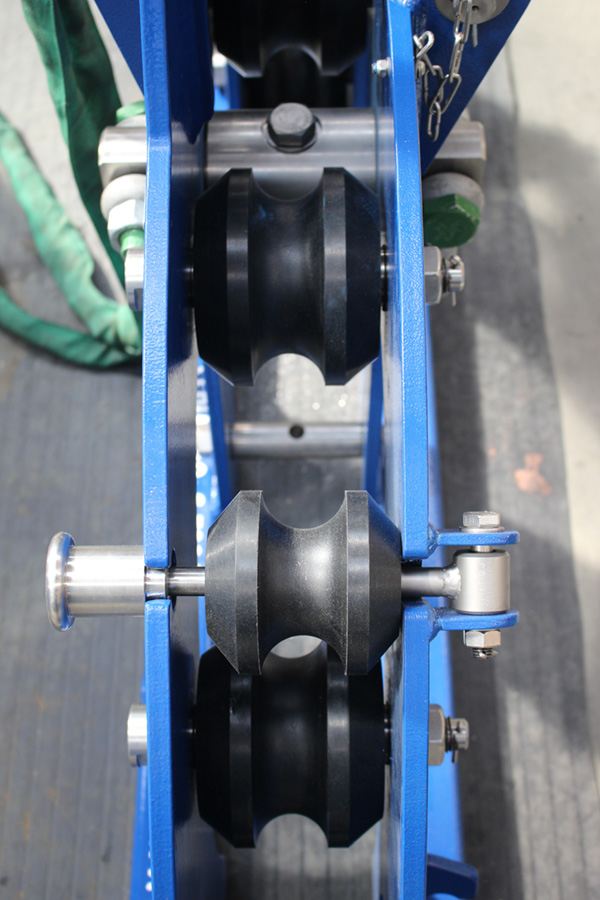

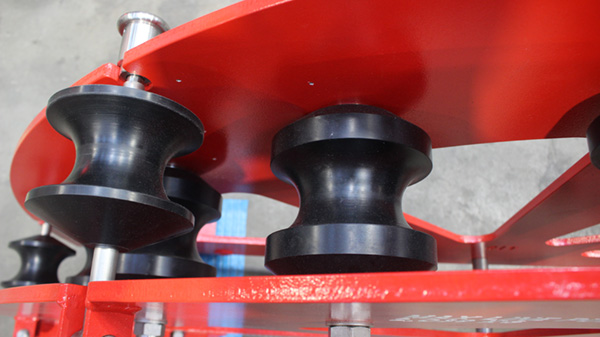

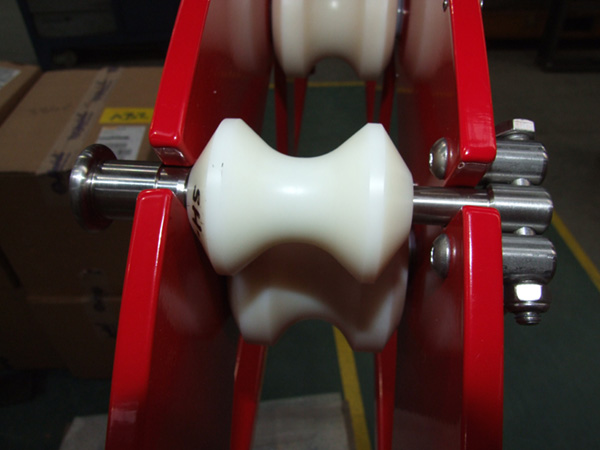

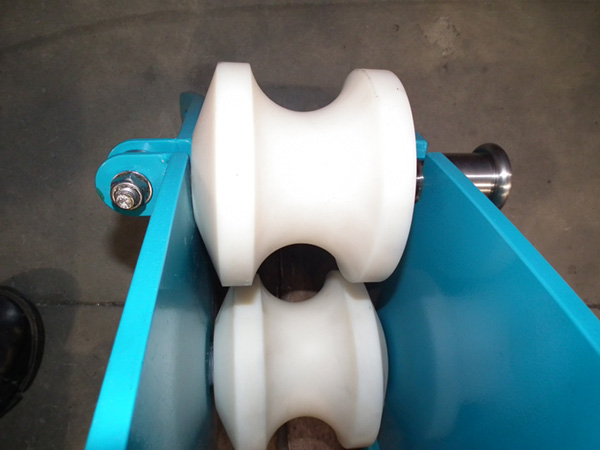

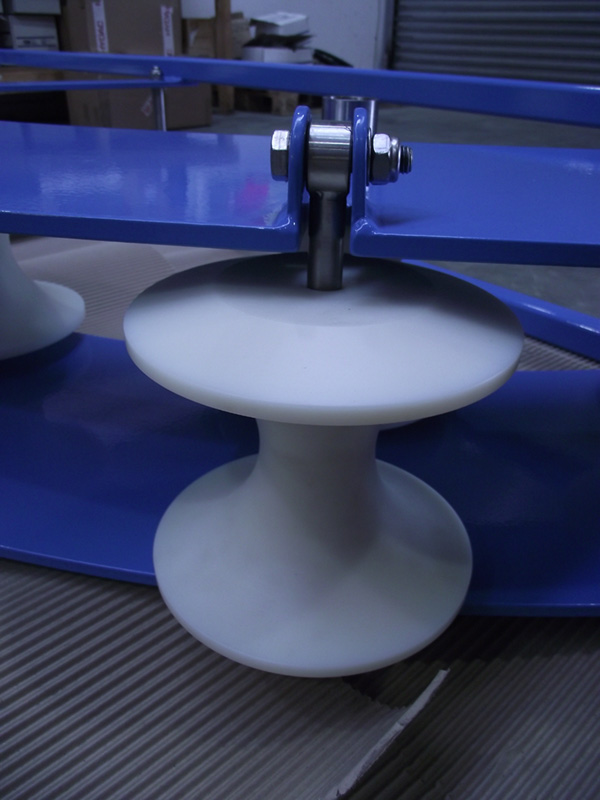

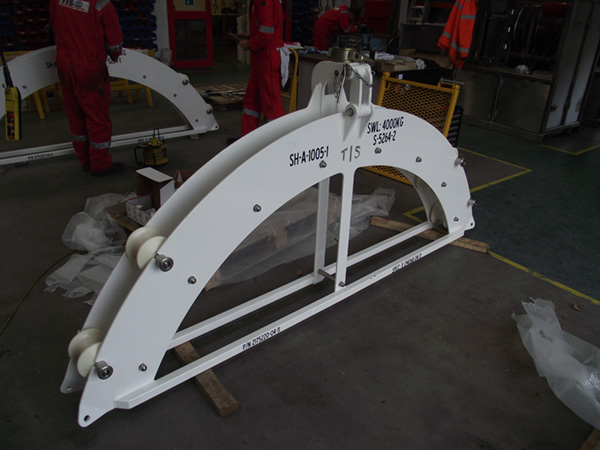

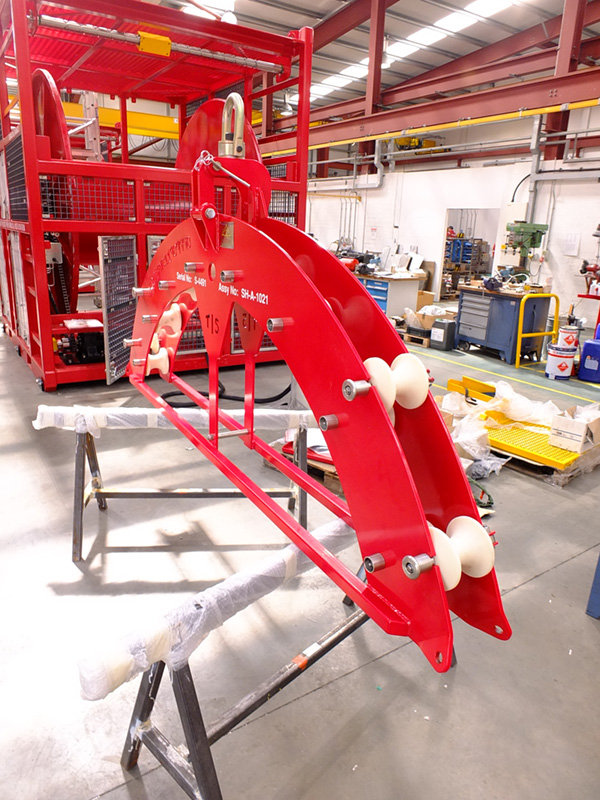

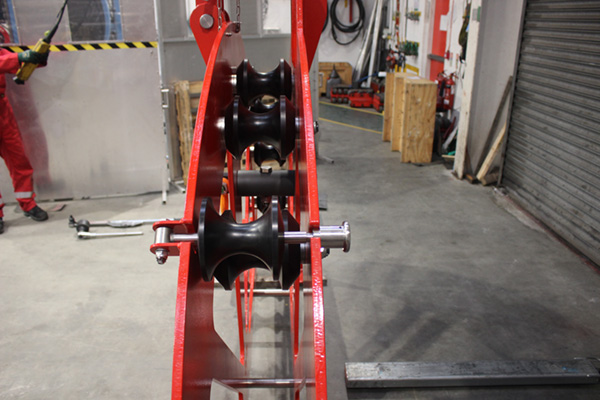

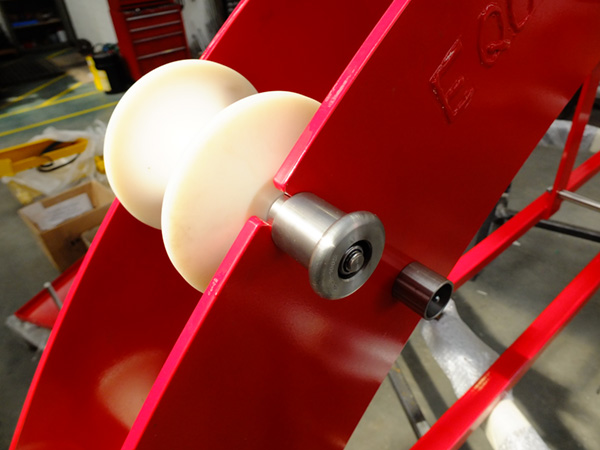

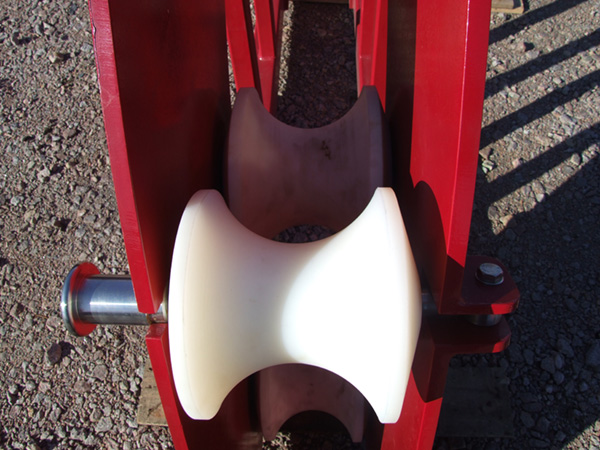

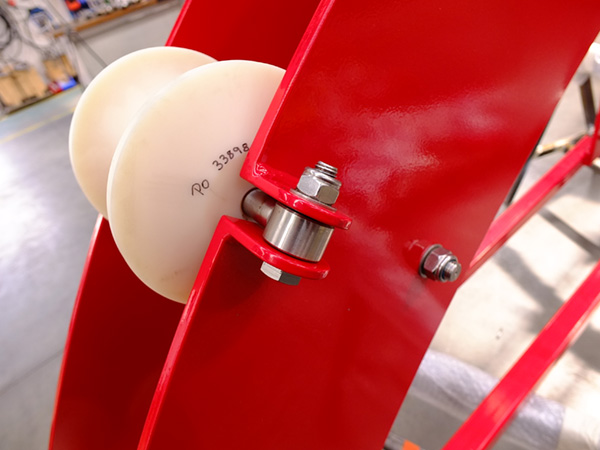

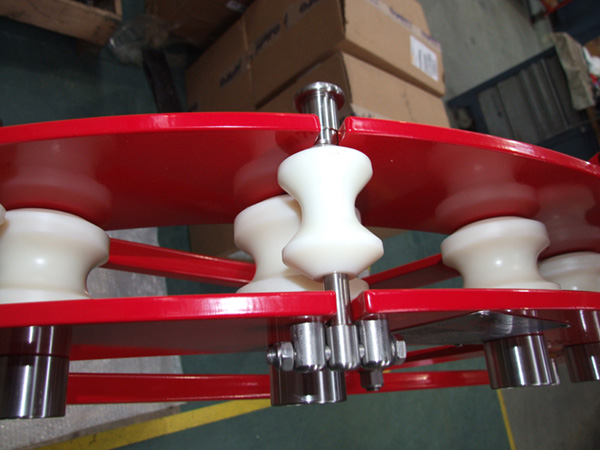

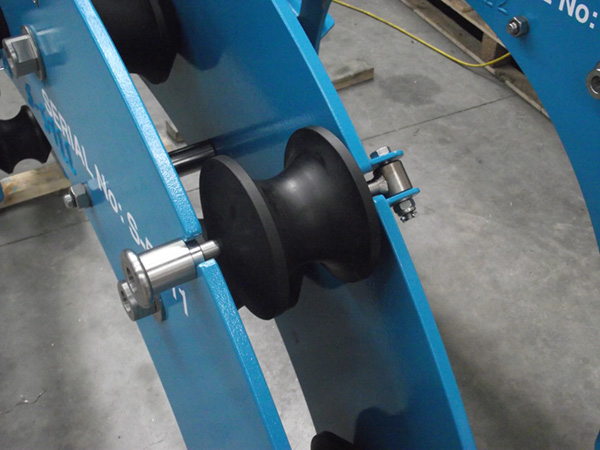

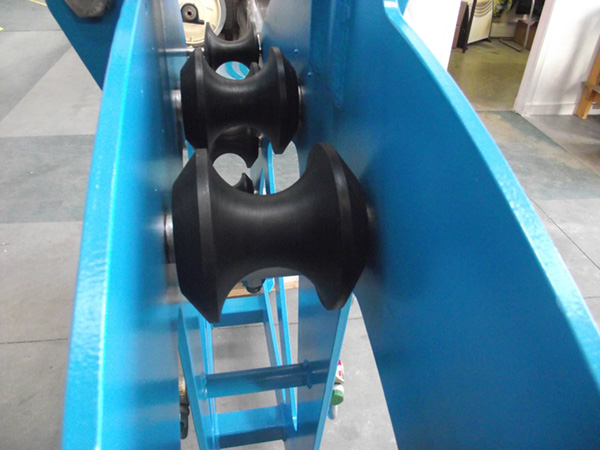

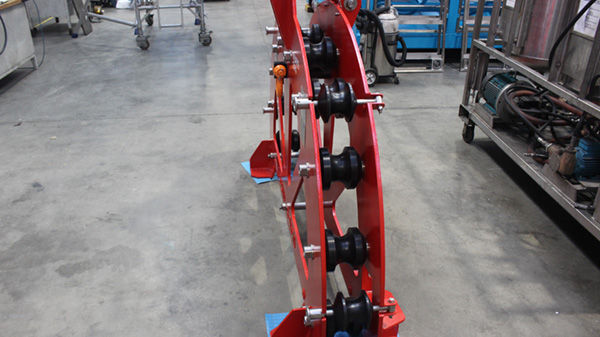

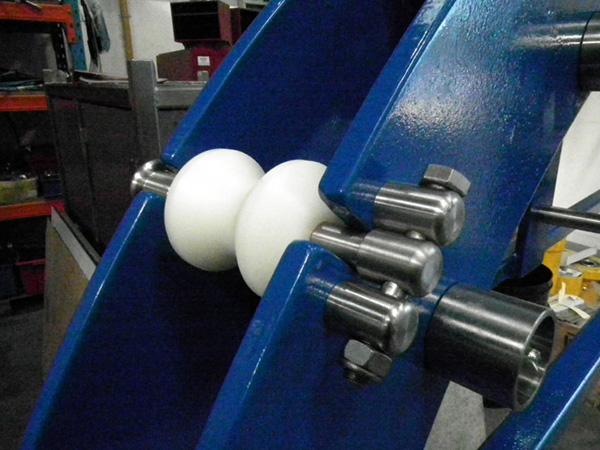

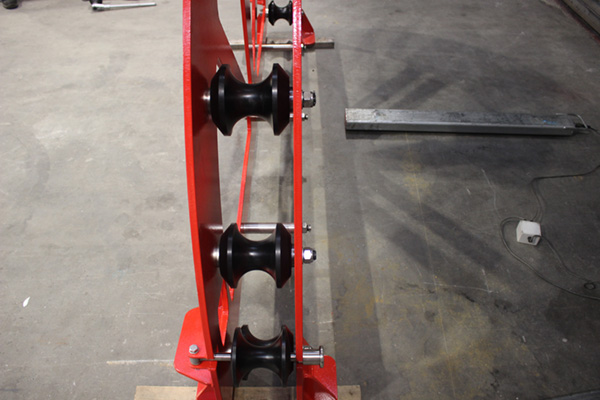

Large Diameter Nylon Rollers to prevent umbilical damage
Anti-Static Roller Material to eliminate risk of static ignition

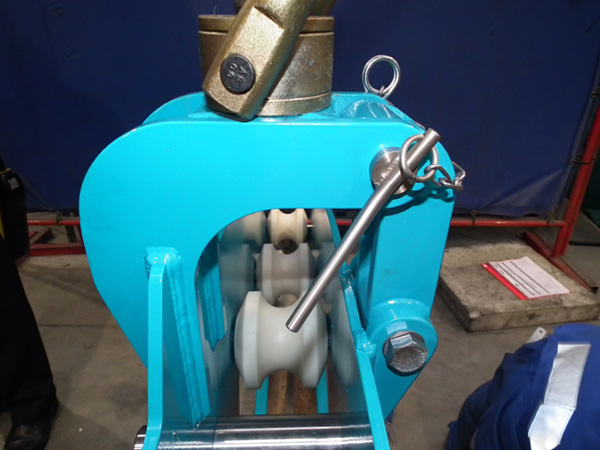

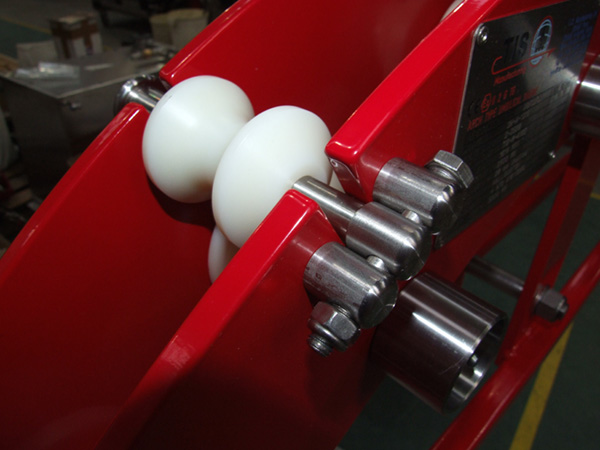

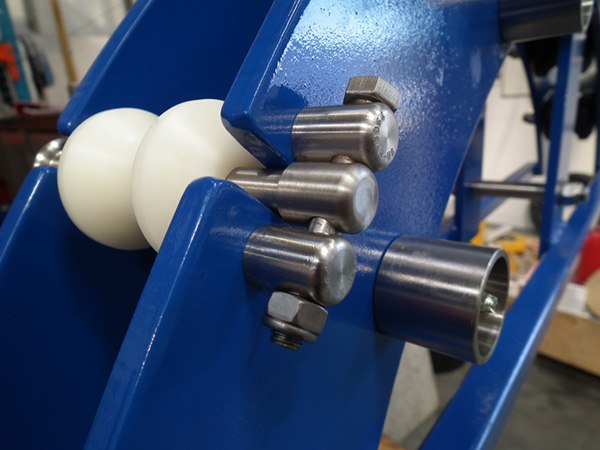

Spring Loaded Fixtures to allow quick release of the umbilical

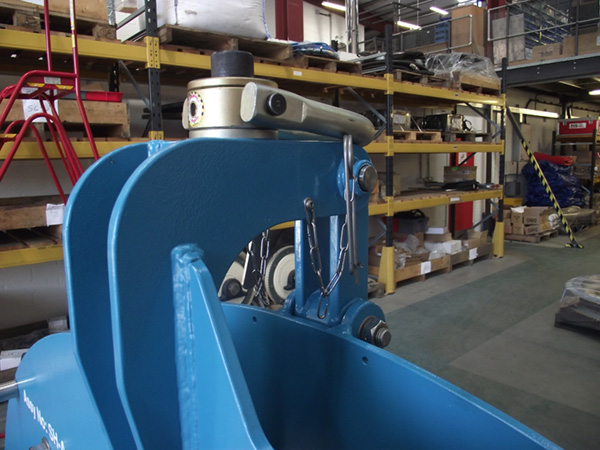

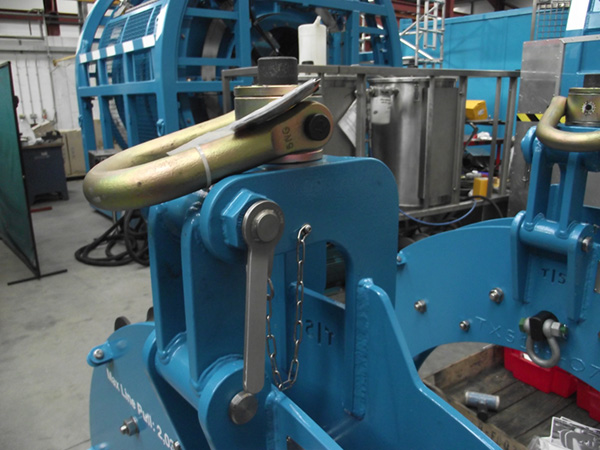

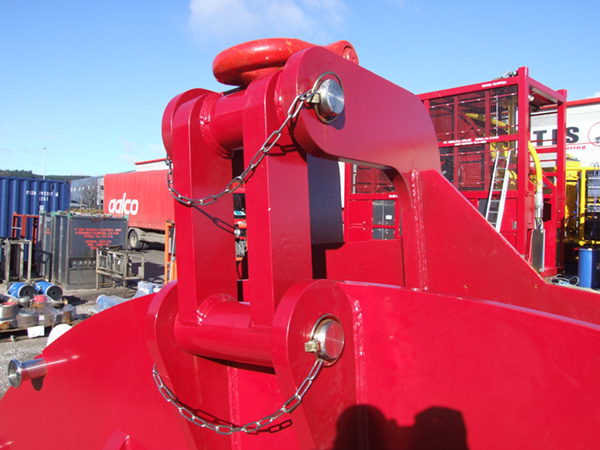

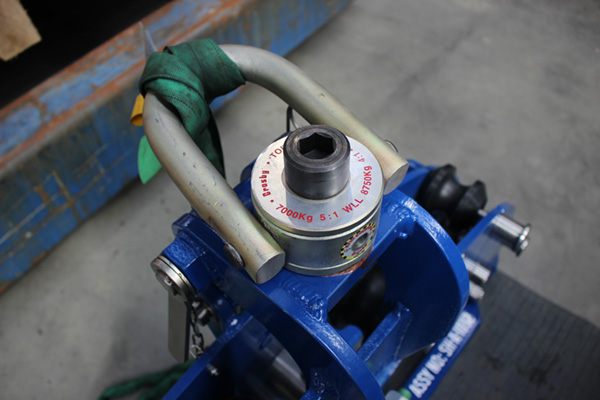

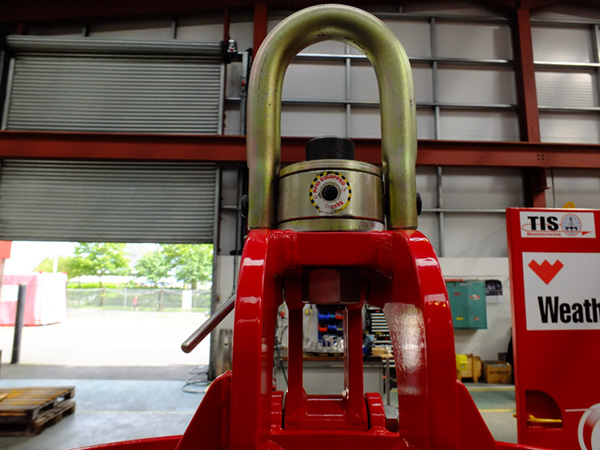

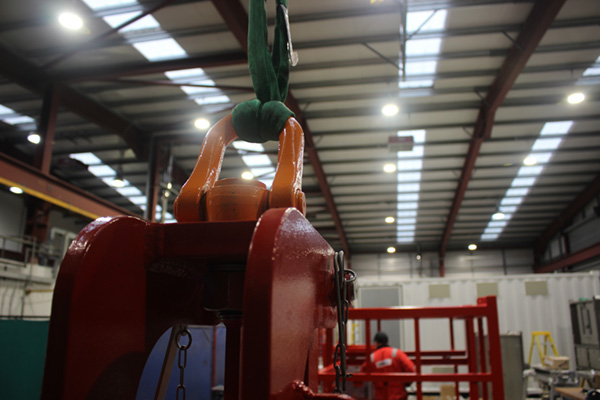

Lift Point Hinge Section to allow for umbilical to be fitted or removed while suspended

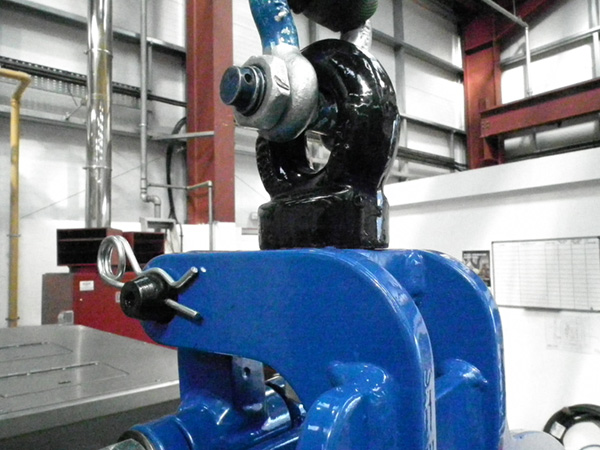

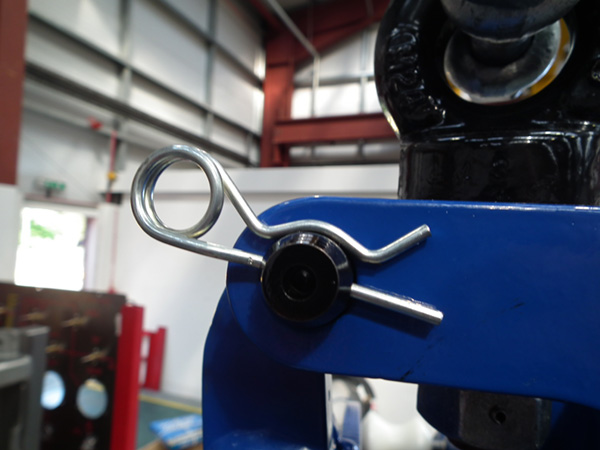

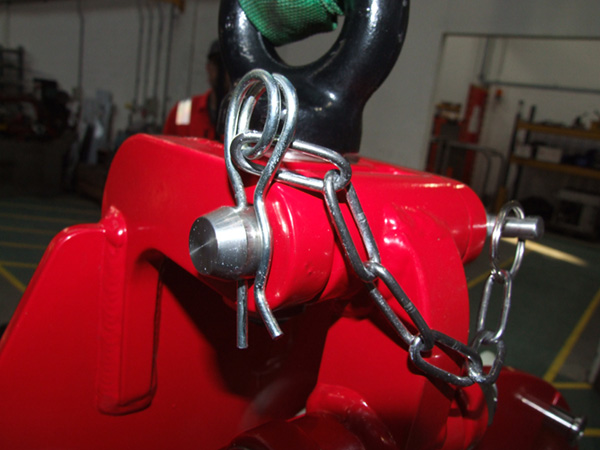

Integral Fall Arrestor Securing Pin Assembly

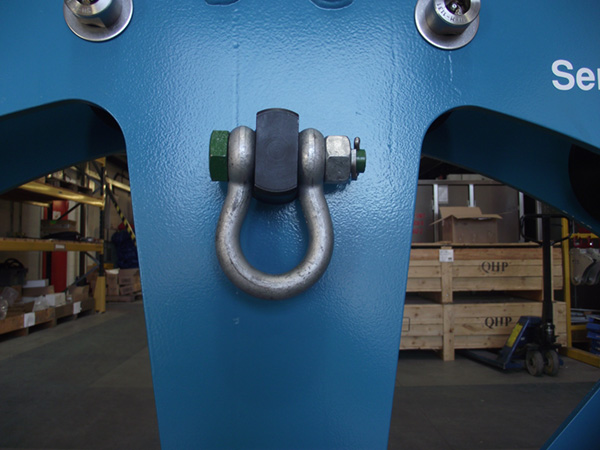

Guy Line Fixture Points for stability
Goose Neck Sheaves with Riser Clamp Assembly for securing arch sheave to riser

TIS delivers Topside Controls Package to UK Client for project works in Caspian Sea

In 2013, TIS Manufacturing was awarded a scope for the design and manufacture of a Topside Controls Package for a client’s IWOCS rental fleet, with the equipment being deployed for international service since delivery, including projects offshore Malaysia, Eqypt, and Senegal.

TIS Umbilical Reelers supplied for Major Service Company in US

TIS Manufacturing closed 2024 with the completion of an Umbilical Reeler and Arch Sheaves designed to accommodate a 12,500ft length of 68mm OD electro-hydraulic umbilical.

Topside Controls Package manufactured for client’s global IWOCS rental fleet

In 2013, TIS Manufacturing was awarded a scope for the design and manufacture of a Topside Controls Package for a client’s IWOCS rental fleet, with the equipment being deployed for international service since delivery, including projects offshore Malaysia, Eqypt, and Senegal.

TIS Umbilical Arch Sheaves Brochure

TIS Umbilical Arch Sheaves are specifically designed for operation with bespoke manufactured TIS Umbilical Reelers as part of a complete Intervention Workover Control System (IWOCS).

TIS Subsea Brochure

TIS Manufacturing is a specialist in the design, manufacture, refurbishment and rental of well service and subsea control equipment for the oil and gas industry.

TIS Subsea Aftermarket Services Brochure

TIS Manufacturing provides a range of after market solutions to fully service both OEM and third party equipment.

TIS Slipring Assemblies Brochure

TIS Slipring Assemblies are designed to facilitate the transmission of multiple hydraulic, chemical, electrical and fibre optic power signals from a stationary source to the rotating drum on the umbilical reeler.
