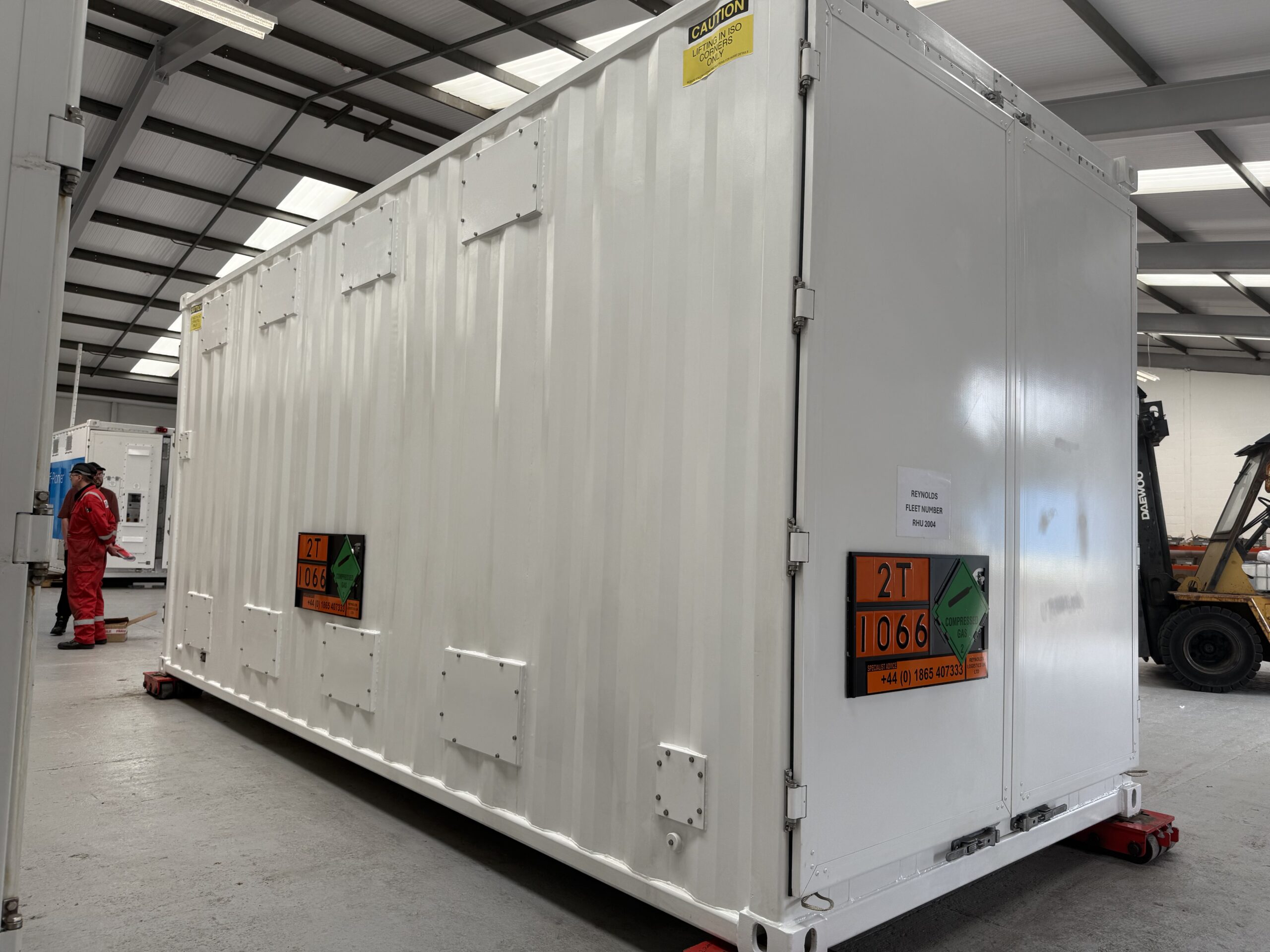

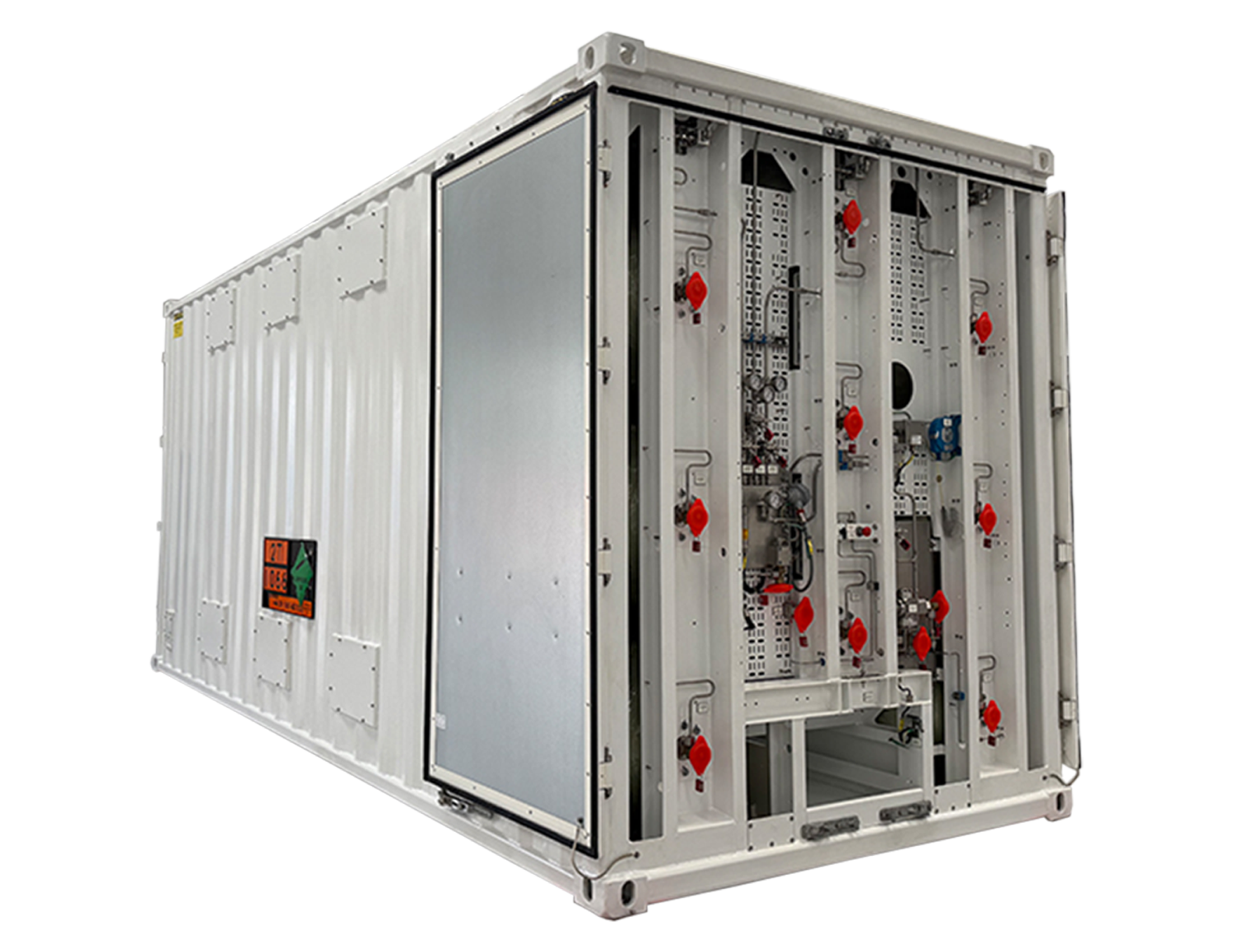

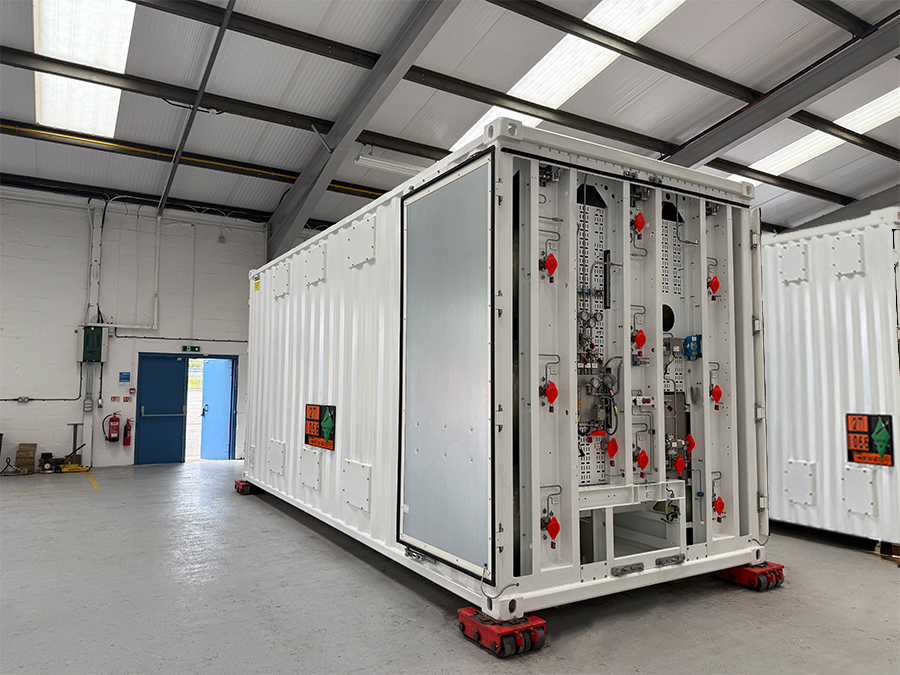

H2 TITAN – Multiple Element Hydrogen Gas Containers (MEGC)

The H2 Titan provides a fully mobile, automated and containerised system.

The unit offers a combined solution to storage and transport of hydrogen gas for commercial and industrial vehicle logistics and is designed to be integrated into a HGV (Heavy Goods Vehicle).

Design Standards:

  • TPED 2010/35/EU Pi
  • TPED 2010/35/EU Rho
  • EN13807:2017
  • EN 12245: 2009 + A1:2011
  • ATEX Zone 1
  • ATEX Zone 1 Certification
  • 20ft CSC/ISO Container
  • 9-off Pressure Vessels
  • 14,994 Litre Capacity
  • Working Pressure: 350 bar (5,076 psi)
  • 6-off Thermal Pressure Relief Devices (TPRDs)
  • System Fitted Back Pressure Regulator
  • Up to 20 bar/min (290 psi/min) Dispensing Speed
