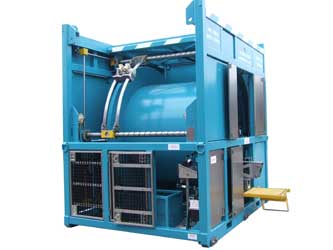

Umbilical Reelers
TIS Umbilical Reelers are designed to accomodate umbilical products with multiple hydraulic, chemical, electrical and fibre optic power and signal cores.
Bespoke umbilical reelers can be configured to deploy and recover any length and diameter of umbilical product, with standard build types including IWOCS Umbilical Reeler Packages, Drilling Umbilical Reeler Packages Lubricator Valve Umbilical Reelers, Nitrogen Hose Reelers and Cable Reelers.
All reelers designed by TIS are CE marked in accordance with 2006/42/EC (Machinery Directive)

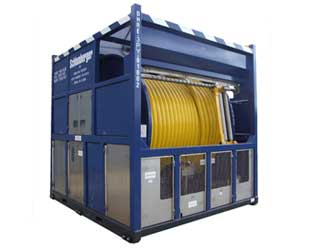

TU-A-1011-2
Suitable for 94 mm OD by 1,000 m umbilical with 4 function lines, 10k slipring assembly connected in series with needle valves and pressure 2 x 7,000psi lines, 1 x 10,000psi line and a chemical injection line.
Frame: 3,760 mm Length x 3,277 mm Width x 3,715 mm Height

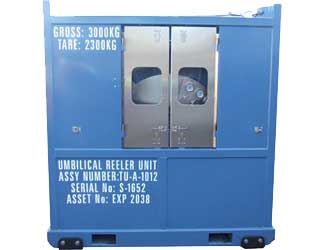

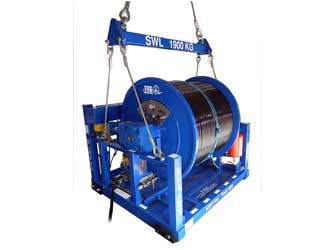

TU-A-1012
Suitable for 51 mm OD by 200 m umbilical with 6 function lines, 10k slipring assembly connected in series with needle valves and pressure gauges. All ports ¼” line size.
Frame: 1,930 mm Length x 1,820 mm Width x 2,010 mm Height

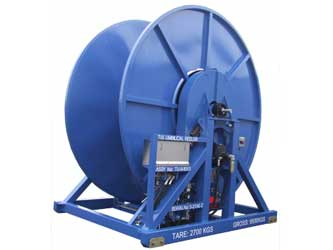

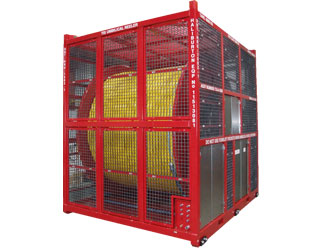

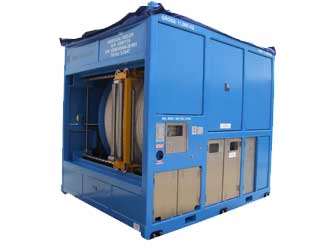

TU-A-1013
Suitable for 103 mm OD by 762 m umbilical with a 1” Slip ring Maximum Working Pressure 300 bar, and a 1/2” Slip ring Maximum Working Pressure 410 bar
Frame: 3,160 mm Length x 2,500 mm Width x 3,500 mm Height

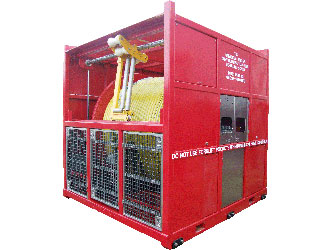

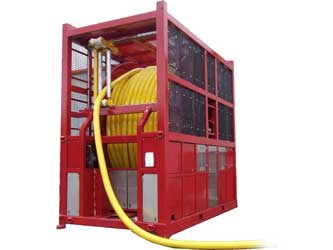

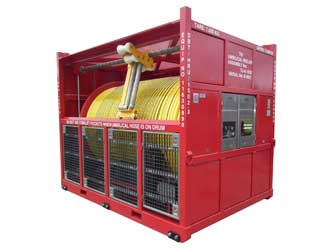

TU-A-1015
Suitable for 79 mm OD by 1,830 m umbilical with a 16 pass hydraulic stab plate with clamp assembly connects all subsea control lines to the unit. The subsea control panel has 6 lines with maximum working pressure of 10k.
Frame: 3,810 mm Length x 3,250 mm Width x 3,835 mm Height

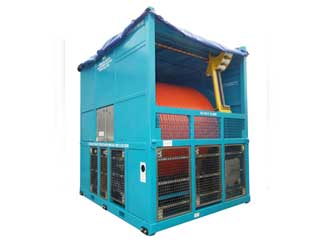

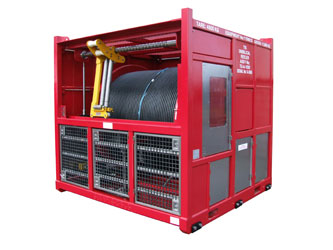

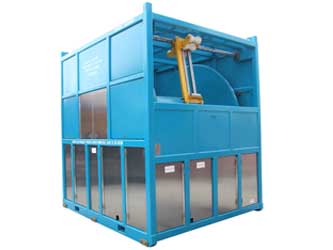

TU-A-1016
Suitable for 103 mm OD by 2,000ft umbilical with a 65 pass hydraulic stab plate with clamp assembly connects all subsea control lines to the unit. The subsea control panel has 61 lines with maximum working pressure of 3k.
Frame: 2,850 mm Length x 2,780 mm Width x 3,500 mm Height

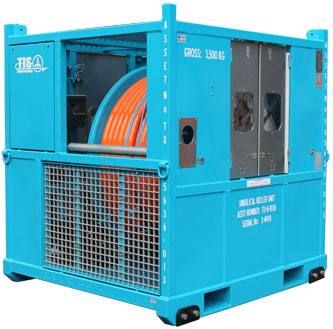

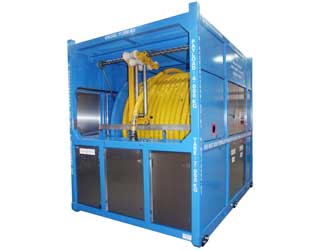

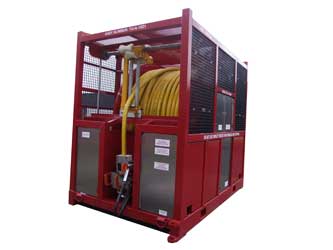

TU-A-1017
suitable for 103 mm OD by 2,000ft umbilical with a 65 pass hydraulic stab plate with clamp assembly connects all subsea control lines to the unit. The subsea control panel has 61 lines with maximum working pressure of 3k.
Frame: 2,850 mm Length x 2,780 mm Width x 3,500 mm Height

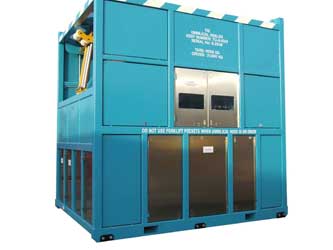

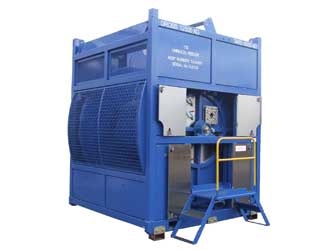

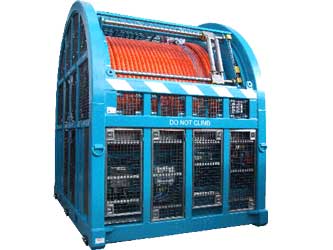

Electro-Hydraulic Reeler (TU-A-1018)
Suitable for 78 mm OD by 2,500m umbilical with a 12 pass hydraulic slipring assembly,designed for dynamic operation rotating under a maximum pressure of 12,000 psi, and a 66 pass Trollex electrical slipring.
Frame: 4,510 mm Length x 3,200 mm Width x 4,300 mm Height

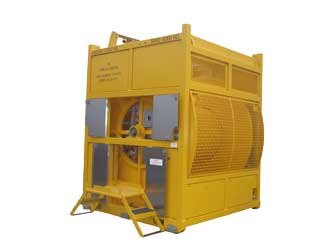

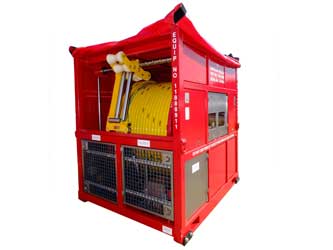

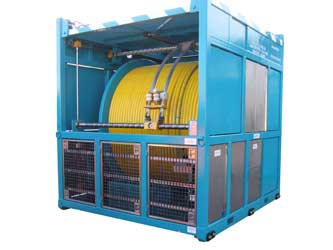

TU-A-1019
Suitable for 64 mm OD by 3,000m umbilical with a Hydraulic 6 function lines, 10k slipring assembly connected in series with needle valves and pressure gauges. All ports ¼” line size. There is also a 16 pass electrical slipring on the opposite side of the drum.
Frame: 3,810 mm Length x 3,000 mm Width x 3,835 mm Height

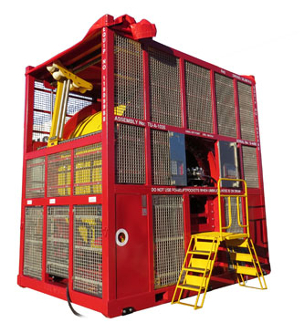

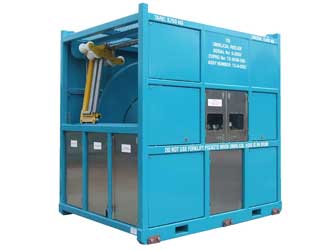

TU-A-1020
Suitable for 153mm OD by 720m umbilical with an umbilical control panel segment with 13 lines on stab plate, 6 lines on the bulkhead, 12 lines on the leectrical slipring and 8 lines on fibre optic slipring.
Frame: 3,810 mm Length x 3,000 mm Width x 3,835 mm Height
TU-A-1021
Suitable for 80mm OD by 720m umbilical with a hydraulic slipring with 10 hydraulic lines, and 12 lines through an electrical slipring.
Frame: 3,760 mm Length x 2,425 mm Width x 3,375mm Height
TU-A-1022
Suitable for 65 mm OD by 1,000m umbilical with a Hydraulic Slipring with 6 function lines, 10k slipring assembly connected in series with needle valves and pressure gauges. All ports ¼” line size.
Frame: 3,060 mm Length x 2,240 mm Width x 3,055 mm Height
TU-A-1023
suitable for 97.7 mm OD by 500m umbilical with a stab plate connection, The umbilical control panel segment has 6 functions.
Frame: 3,412 mm Length x 2,600 mm Width x 3,385 mm Height
TU-A-1024
Suitable for 95 mm OD by 650m umbilical with a 6 pass Hydraulic slipring as well as a 14 pass stab plate.
Frame: 3,810 mm Length x 3,000 mm Width x 3,385 mm Height
TU-A-1025
Suitable for 100 mm OD by 350m umbilical with lifting beam and a 11 pass stab plate.
Frame: 3,610 mm Length x 2,262 mm Width x 3,305 mm Height
TU-A-1026
Suitable for 56.4 (2") mm OD by 1800m umbilical, with a single connection with maximum working pressure of 5k. This unit also has a retractable roof.
Frame: 3,410 mm Length x 2,990 mm Width x 3,385 mm Height
TU-A-1027
Suitable for 54 mm OD by 1000m umbilical, with a single connection line with maximum working pressure of 7.5k.
Frame: 3,380 mm Length x 2,740 mm Width x 3,105 mm Height
TU-A-1028
Suitable for 61mm OD by 2,500m umbilical, with an 8 pass Hydraulic Slipring with a Working Pressure of 15k.
Frame: 3,540 mm Length x 2,860 mm Width x 3,560 mm Height
TU-A-1029
Suitable for 61mm OD by 1,500m umbilical, with an 8 pass Hydraulic Slipring with a Working Pressure of 15k.
Frame: 3,540 mm Length x 2,860 mm Width x 3,560 mm Height
Cable Reeler (TU-A-1030)
Suitable for 31.5mm OD by 3,048m Cable Reeler.
Frame: 2,612 mm Length x 2,790 mm Width x 2,650 mm Height
TU-A-1031
suitable for 61mm OD by 1,500m Umbilical Reeler.
Frame: 3,810 mm Length x 2,910 mm Width x 3,885 mm Height
TU-A-1032
Suitable for 61mm OD by 1,500m Umbilical Reeler.
Frame: 2,472 mm Length x 3,692 mm Width x 2,875 mm Height
TU-A-1033
Suitable for 31.5mm OD by 460m Umbilical Reeler.
Frame: 1,712 mm Length x 1,700 mm Width x 1,590 mm Height
TU-A-1034
Suitable for 61mm OD by 1,500m Umbilical Reeler.
Frame: 2,512 mm Length x 2,010 mm Width x 2,607 mm Height
TU-A-1035
Suitable for 88mm OD by 2,440m Umbilical Reeler.
Frame: 4,762 mm Length x 3,100 mm Width x 4,830 mm Height
TU-A-1036
Suitable for 58mm OD by 150m Umbilical Reeler.
Frame: 2,057 mm Length x 1,988 mm Width x 2,183 mm Height
