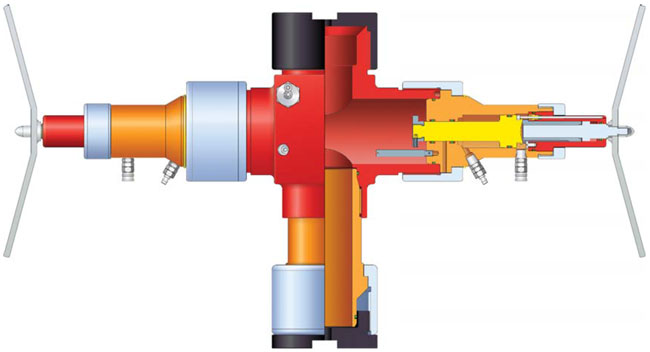

Triton Wireline Valves
TIS Triton lightweight wireline valves are specifically designed to give the operator maximum reliability, flexibility and simplicity of use, while carrying out routine intervention work. They are especially suited for wireline operations, where the surface equipment is installed onto the wellhead by means of a telescopic “Gin-pole” or lightweight mast.
Options
The TIS Triton wireline valve range is available with the following options :
- 3.00” ID & 4.00” ID Through bores
- Single, dual and triple ram configurations
- Standard or sour service
- Manual or remote hydraulic operation
- 5,000 Psi working pressures
- Service temperature range of -29 to +121 Degrees C
- Choice of quick union or API flanged connections
- Rams dressed for slick line or braided line operations
Technical Features
- Operator friendly design, no tools required for redress
- Compact mono-block lightweight bodies
- Compact lightweight cylinders with external ram position indicators
- Non rising manual stems
- Stainless steel one-piece pistons
- Keyless ram bores, allows for ram inversion when used in dual configuration with braided cable
- Large cross-section ram seals
- Inner seal retaining bars
- Replaceable cartridge type equaliser valves
- Integral check valves on grease injection ports (where applicable)
Step 1 : Triton Manual Valves
| Thro' Bore | Working Pressure | Type | Part Number |
|---|---|---|---|
| 3.00" | 5,000 psi | 5-1/2" - 4x2 'B' Type | 0002-00025-TIS |
| 3.00" | 5,000 psi | 5" - 4Thd 'O' Type | 0002-00013-TIS |
| 4.00" | 5,000 psi | 7: - 5Thd 'B' Type | 0003-00020-TIS |
| 4.00" | 5,000 psi | 6-1/2" - 4Thd 'O' Type | 0003-00019-TIS |
Step 1 : Or Triton Hydraulic Valves
| Thro' Bore | Working Pressure | Type | Part Number |
|---|---|---|---|
| 3.00" | 5,000 psi | 5-1/2" - 4x2 'B' Type | 0002-00024-TIS |
| 3.00" | 5,000 psi | 5" - 4Thd 'O' Type | 0002-00003-TIS |
| 4.00" | 5,000 psi | 7: - 5Thd 'B' Type | 0003-00018-TIS |
| 4.00" | 5,000 psi | 6-1/2" - 4Thd 'O' Type | 0003-00017-TIS |
Step 2 : Triton Ram Assembly
| Thro' Bore | Working Pressure | Type | Part Number |
|---|---|---|---|
| 3.00" | 5,000 psi | 0.125" Dia. | 0002-00007-TIS |
| 3.00" | 5,000 psi | 3/16" Dia. | 0002-00019-TIS |
| 3.00" | 5,000 psi | 7/32" Dia. | 0002-00020-TIS |
| 3.00" | 5,000 psi | 1/4" Dia. | 0002-00006-TIS |
| 3.00" | 5,000 psi | 5/16" Dia. | 0002-00021-TIS |
| 4.00" | 5,000 psi | 0.125" Dia. | 0003-00021-TIS |
| 4.00" | 5,000 psi | 3/16" Dia. | 0003-00022-TIS |
| 4.00" | 5,000 psi | 7/32" Dia. | 0003-00023-TIS |
| 4.00" | 5,000 psi | 1/4" Dia. | 0003-00024-TIS |
| 4.00" | 5,000 psi | 5/16" Dia. | 0003-00025-TIS |
Links & Specs
Single Hydraulic Triton Wireline Valve
Single Manual Triton Wireline Valve
