The package comprised of:

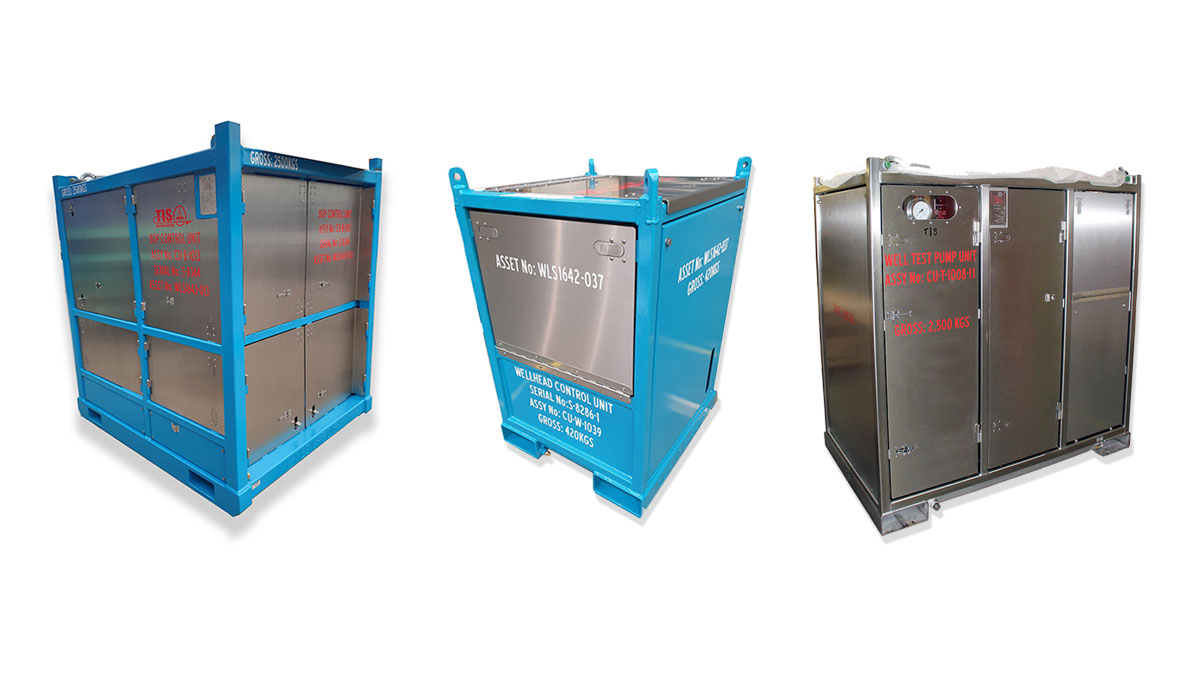

1x Quad WLV Control Panel
7x 10K Wellhead Control Panels
7x 10K Pressure Test Pump Units
TIS Wireline Valve Control Units are designed to control wireline valves and other surface pressure control equipment during well intervention operations. TIS Wellhead Control Panels are designed to control the xmas tree functions and surface pressure control equipment during well intervention operations. TIS Pressure Test Pumps are designed as a safe and reliable facility for pressure testing pressure control equipment during well intervention operations. All equipment in this package was built and certified in compliance with DNV-ST-E271 and CE ATEX Zone 2.

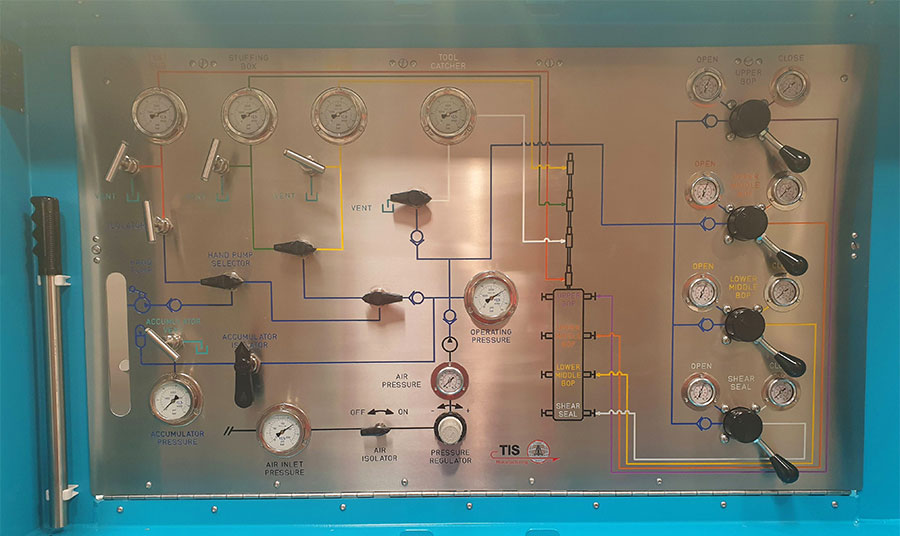

The Quad WLV Control Panel (CU-B-1013) was designed for control of a quad wireline valve, tool catcher, stuffing box, line wiper and test sub. Control fluid was delivered to the hydraulic system under pressure via a pneumatic pump (c/w back up hand pump) and a 70L fluid reservoir. Three 37L accumulators provide a stored volume at 5,000psi to assist with the WLV functions. The unit also incorporated a local and remote operated Emergency Shutdown System (ESD). All functions were connected via 100ft hoses stored on wet centre hose reels with hand wind deployment and recovery.
The 10K Wellhead Control Panels (CU-W-1039) were designed to control the xmas tree functions from a compact and robust skid during well intervention operations. Control fluid was delivered to the hydraulic system under pressure via a pneumatic pump (c/w back up hand pump) and a 20L fluid reservoir. The tree controls include a Master Valve (MV), Spare Kill Wing Valve (KWV) and a Sub Surface Safety Valve (SSSV). The unit also incorporated a two stage time delayed Emergency Shutdown System (ESD) and a low air pressure warning system.
The 10K Pressure Test Pump Units (CU-T-1008-11) were designed to pressure test up to 10,000psi from a self contained skid with 1000L reservoir, 100ft hose and integrated digital chart recorder. Two pneumatic pumps – low pressure and high volume, and high pressure and low volume – assist in filling a void quickly and to the correct pressure to perform and chart a pressure test.
As a leading provider in the design, manufacture, refurbishment and rental of well intervention equipment, TIS have an extensive library of existing designs to offer or use as a base to develop a bespoke solution.
We have a comprehensive track record of delivering the highest quality well intervention equipment on the market including Wireline Units, Wireline Masts, Wireline PCE, Pumps & Panels, and a range of bespoke equipment for our client’s unique intervention technologies.
