TIS Wireline Units are designed for controlled deployment and recovery of slickline, braided line and electric line from an open console or fully containerised unit, during well intervention operations.  TIS Powerpacks can be designed to any client specification with our field proven designs thriving in harsh environments, and adaptable to any operational requirement needed. All equipment in this package was built and certified in compliance with DNV-ST-E271 and CE ATEX Zone 2.

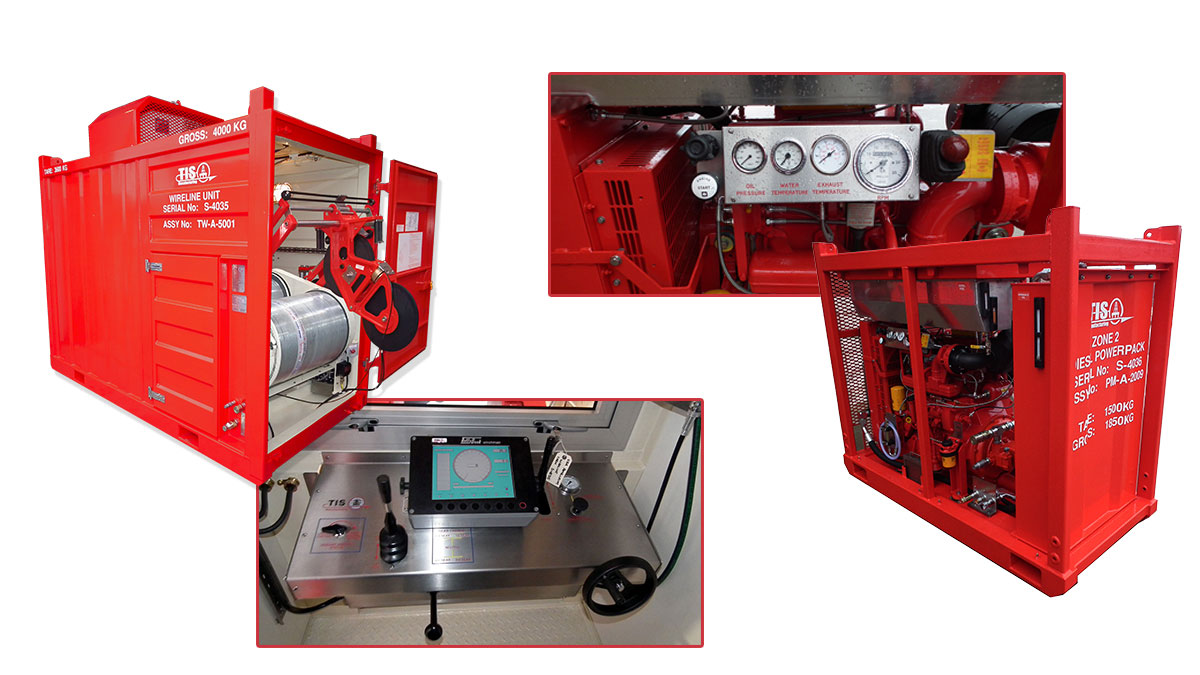

The Containerised Wireline Unit (TW-A-5001) was designed for twin operating modes for both standard slickline operations as well as logging operations when fine constant speeds are required, and can accommodate a range of wires – 39,000ft of 0.092”, 28,000ft of 0.108”, or 21,000ft of 0.125”.  A drum changeout kit was located within the container for installation of drums in the field, which also allows for weight reduction when transporting the wireline unit. The electrical system was designed for a 240-380V 50HZ 1Ph supply and is comprised of a winchman’s panel for recording operational data c/w USB port & cable for data transfer, as well as air conditioning, and lighting for the drum and cabin areas. The internal measuring head sub-assembly is specifically designed to enhance the life of the wire, with integral guide rollers allowing the measuring head to always follow the line of the wire and reduce the bending moments of the wire around the rollers by half.

The Deisel Powerpack (PM-A-2009) was designed to provide the necessary power required for the wireline unit. The JCB444 83HP diesel engine, incorporated in the powerpack is ATEX Zone 2 certified, and is fitted with a stainless steel monitoring panel with gauges indicating the Oil, water, and exhaust temperatures, as well as a gauge for RPM. The powerpack utilises an open loop pump capable of working up to 3,000psi.
